Brand: Binghe

Features:

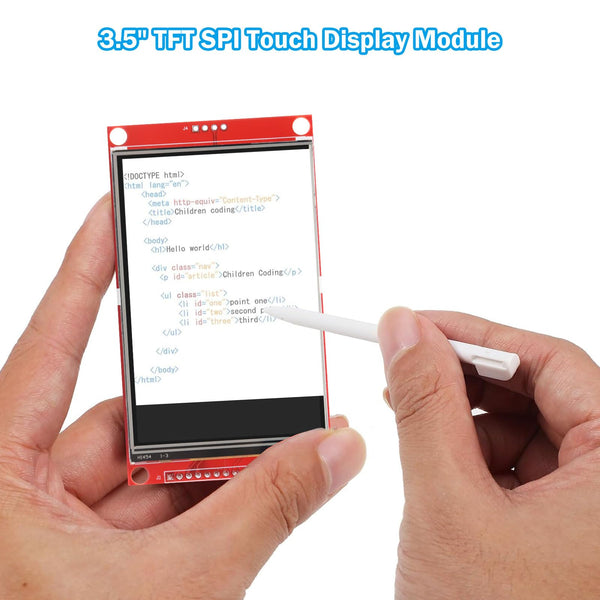

• 【LCD TFT touch display】: 3.5 inch colour screen, supports 16-bit RGB 65K colour display, rich in colour display. 480 x 320 resolution, touch function, with touch pen.
• 【High Integration】: Uses SPI communication interface, only need 4 IO ports for data transfer and control, reduces IO resource utilization and improves system integration.
• 【Excellent Display Performance】: TFT technology, high resolution and color performance, displays images and text clearly and clearly. Some modules support the touch function for interactive operation.
• 【Easy Operation】: Simple interface and driver programs, developers can control and update the display content by simple code. Rich display effects and functional libraries are available for easy secondary development.

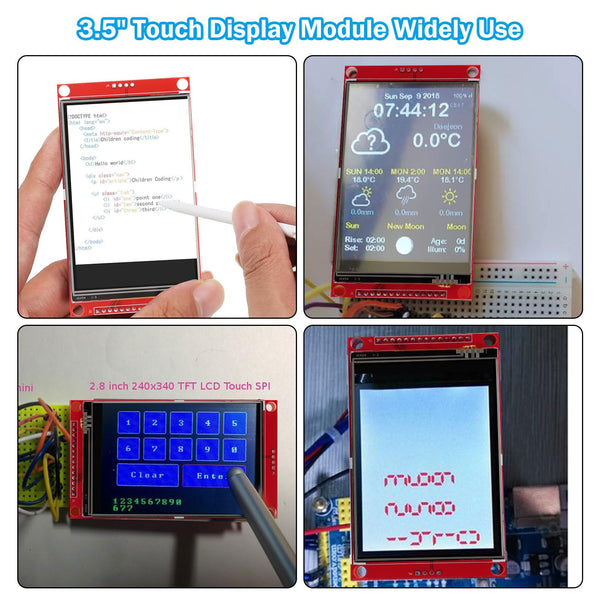

• 【Wide application】: compact size, suitable for various embedded systems and electronic devices. Compatible with Arduino Rev3/Mega controller boards, which will improve your project operation.

model number: YY1-0227

Part Number: YY1-0227

Details: Product Features:
1. Supports multiple single chip microcontrollers for direct installation without the need for wiring
2. Built-in voltage stabilisation IC, supports 5V or 3.3V power supply
3. compatible with 5V/3.3V IO levels, supports various microcontroller IO connections

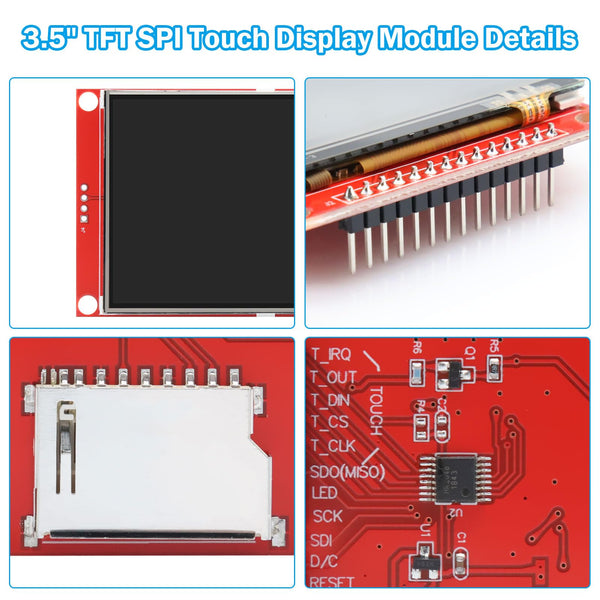

4. Built-in SD card expansion circuit,

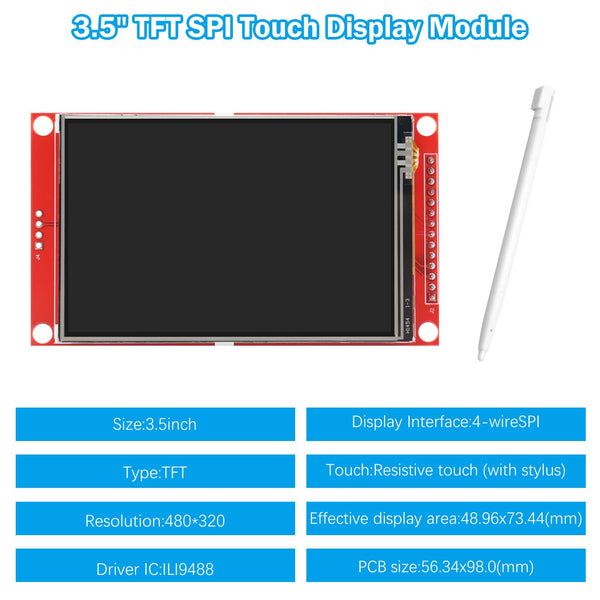

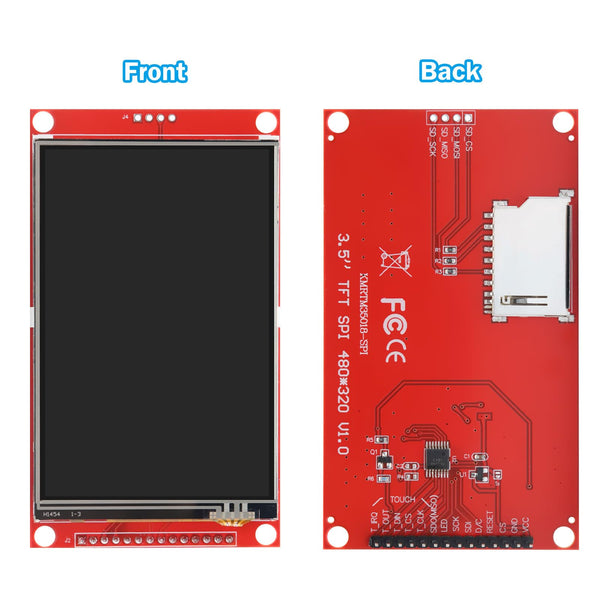

3.5 inch SPI touchscreen display:
Display colour: RGB 65K colour.
Screen size: 3.5 inches.
Type: TFT
Driver IC: ILI9488
Resolution: 480 x 320 (pixels).

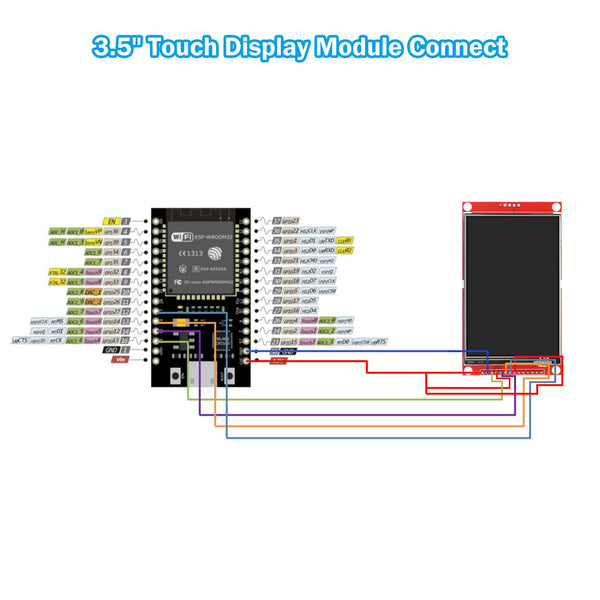

Module interface: 4-wire SPI interface
Active area (AA area): 43.2 x 57.6(mm)

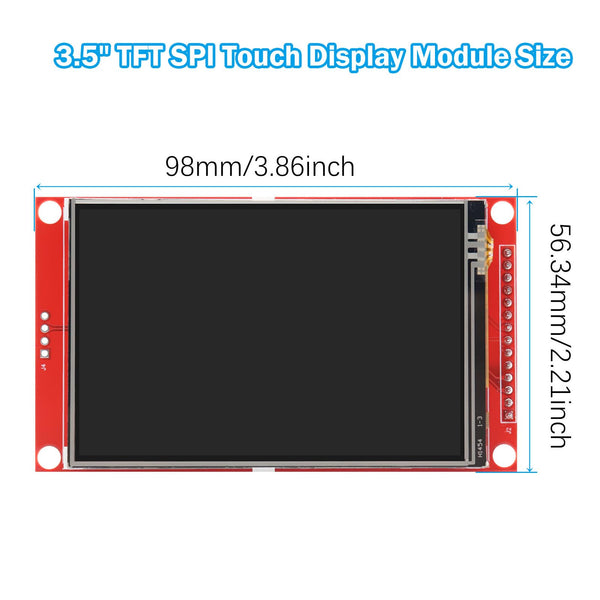

Module PCB Size: 50 x 86(mm)
Operating temperature: -20℃~60℃.
Storage temperature: -30℃~70℃.
VCC supply voltage: 3.3 V ~ 5 V.
Voltage of logical IO ports: 3.3V (TTL)
Power consumption: TBD
Package includes:

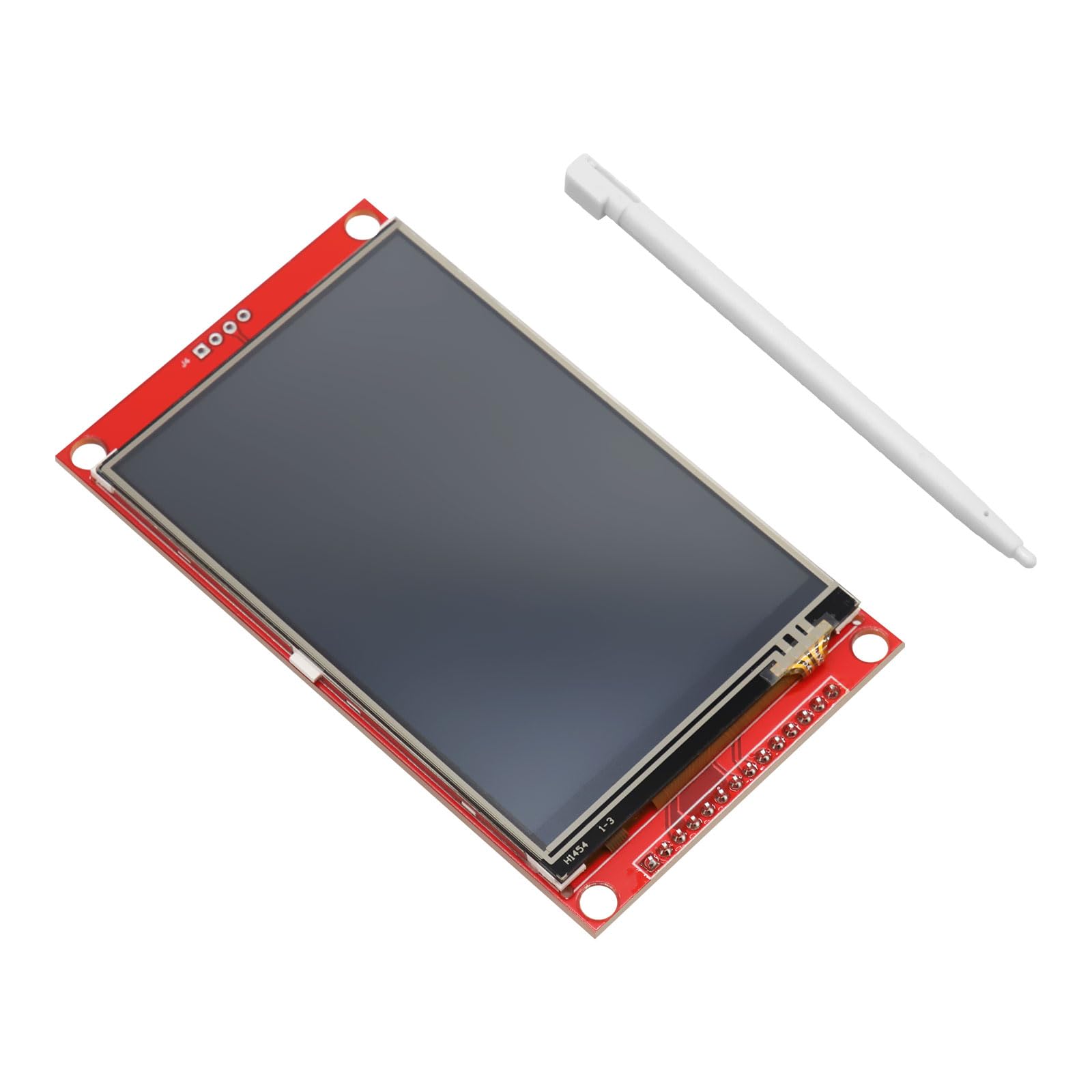

1 x 3.5 inch SPI touch screen display

Package Dimensions: 6.4 x 4.6 x 1.0 inches
