GENERAL SPECIFICATIONS

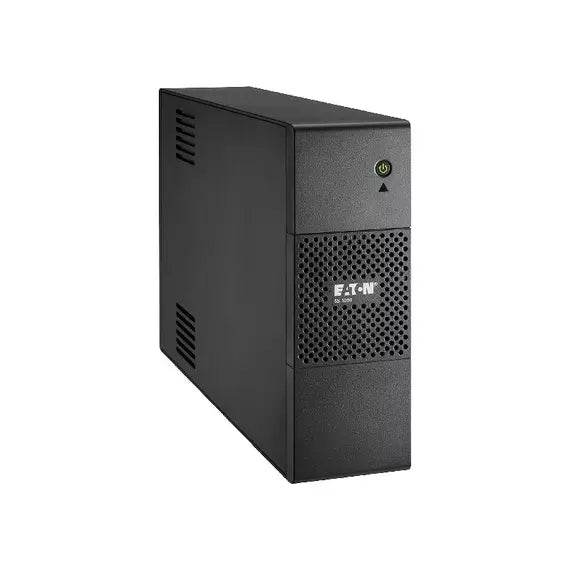

• PRODUCT NAME: Eaton 5S UPS
• CATALOG NUMBER: 5S1000I
• UPC: 743172436962
• PRODUCT LENGTH/DEPTH: 87 mm
• PRODUCT HEIGHT: 250 mm
• PRODUCT WIDTH: 382 mm
• PRODUCT WEIGHT: 9.48 kg
• COMPLIANCES: CE Marked
• CERTIFICATIONS
• IEC/EN 62040-1
• IEC/EN 62040-2
• CE
• EAC

BATTERY

• BATTERY TYPE: Sealed, lead-acid
• BATTERY REPLACEMENT: User-replaceable
• BATTERY QUANTITY: 2
• BATTERY MANAGEMENT: Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
• BATTERY RATING: 12 V / 7 Ah
• EXTENDED BATTERY CAPABILITY: No

ELECTRICAL OUTPUT

• RECEPTACLE: (4) C13, (4) C13 surge only
• VOLTAGE: 230V
• WATTAGE: 600 W
• OUTPUT POWER FACTOR: 0.6
• OUTPUT VOLTAGE RANGE: 184-276 V
• OUTPUT NOMINAL VOLTAGE: 230V
• FEED TYPE: 1
• TOPOLOGY: Line-interactive
• VA RATING: 1000 VA

ELECTRICAL INPUT

• INPUT CONNECTION: C14
• INPUT NOMINAL VOLTAGE: 230V default (220/230/240V)
• NOMINAL FREQUENCY: 50/60 Hz
• INPUT VOLTAGE RANGE: 175-275 V
• INPUT FREQUENCY RANGE: 46-70 Hz

COMMUNICATIONS

• INCLUDES NETWORK CARD: No
• COMMUNICATION: USB port (HID compliant)
• ETHERNET INTERFACE: No
• USER INTERFACE: LEDs
• POTENTIAL FREE SWITCH CONTACT: No
• EXPANSION SLOTS: No
• SOFTWARE COMPATIBILITY: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
• TYPE OF INTERFACE: USB

ENVIRONMENTAL

• ALTITUDE: 2000 m
• NOISE LEVEL: <25 dB at 1 meter
• TEMPERATURE RANGE: 0° to 35°C (32° to 95°F)
• RELATIVE HUMIDITY: 0-85% non-condensing

ADDITIONAL SPECIFICATIONS

• CONSTRUCTION TYPE: Free-standing model
• PACKAGE CONTENTS

• (2) IEC-IEC cables
• USB cable
• User manual
• Safety instructions
• PHASE (OUTPUT): 1
• AUTO SHUTDOWN FUNCTION: Yes
• COLOR: Black
• EFFICIENCY: 97
• RACK MOUNTING KIT: No
• PHASE (INPUT): 1
• SURGE PROTECTIOn: Yes
