Brand: WMYCONGCONG

Features:

• The rotation counts are not limited, designed with continuous 360 degree rotation sensors.
• Working voltage: 5V
• Material: Electronic components + PCB
• Reset to its initial state with the buttons on the rotary encoder, starts counting from 0.
• Designed with detent and push button switch feature, comes with nuts and washers, suitable for Arduino micro controller use.

model number: 8541715726

Part Number: WGCD72

Details: Specification:

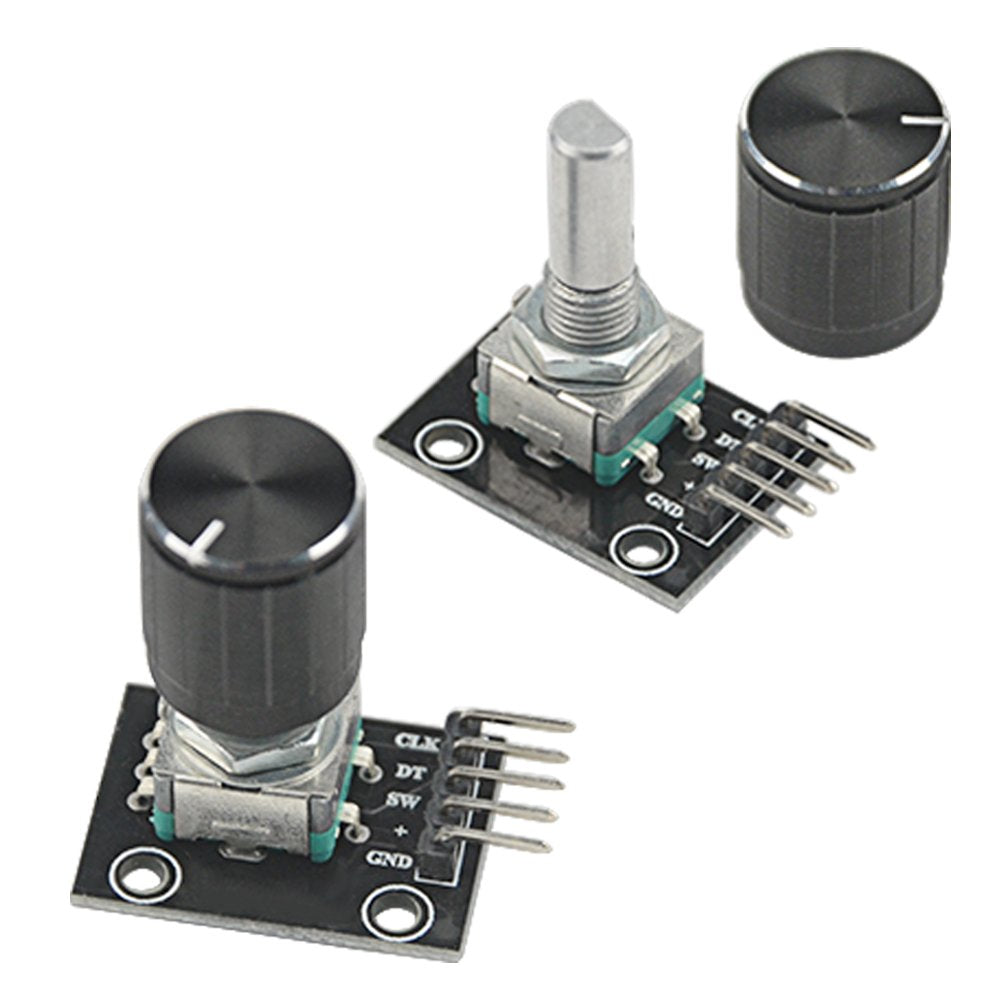

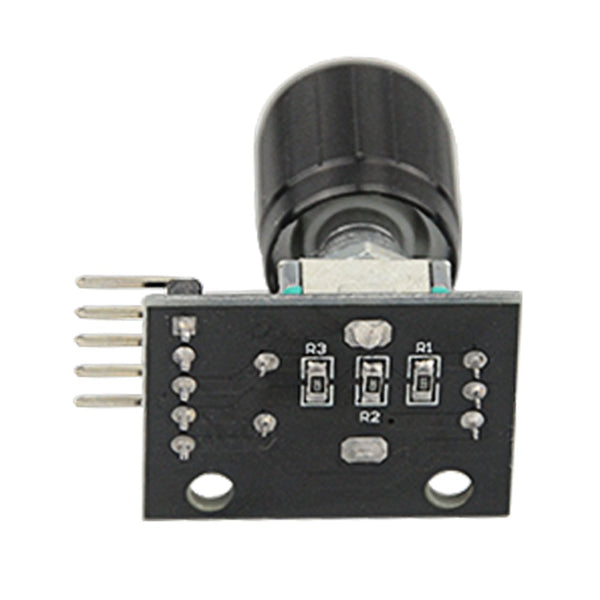

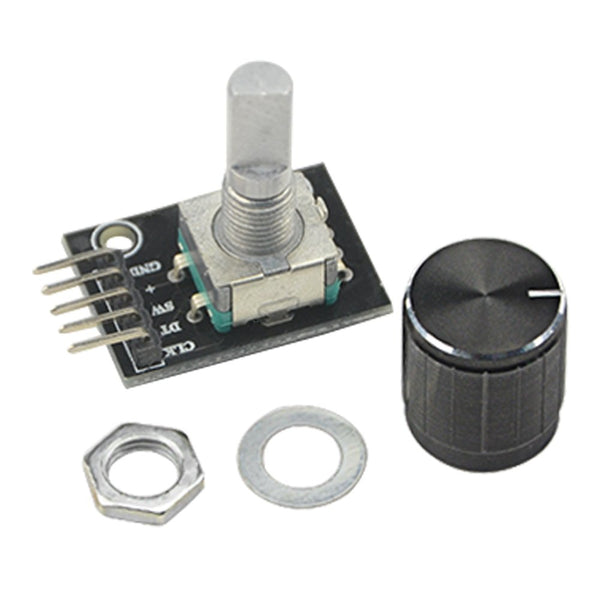

KY-040 Module:
Working voltage: 5V
Pulse circle: 20
Material: electronic components + PCB
Size: 26 x 19 x 29mm/1.02 x 0.75 x 1.14inch
Diameter of the thread: 7mm/0.27inch
Height of the thread: 7mm/0.27inch

Knob Cap:
Diameter: 15mm/0.59inch
Height: 16.5mm/0.65inch

Connection:
"GND”: ground terminal
"+”: 5V power supply
"SW”: 'Select' switch (activated when shaft pressed on top)
"DT”: Encoder Pin B
"CLK”: Encoder Pin A

Designed with detent and push button switch feature, comes with nuts and washers, suitable for Arduino micro controller use. By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer counter, which species rotation counts are not limited. How it works: incremental encoder is a displacement of the rotary pulse signal is converted to a series of digital rotary sensors.

Package Content:

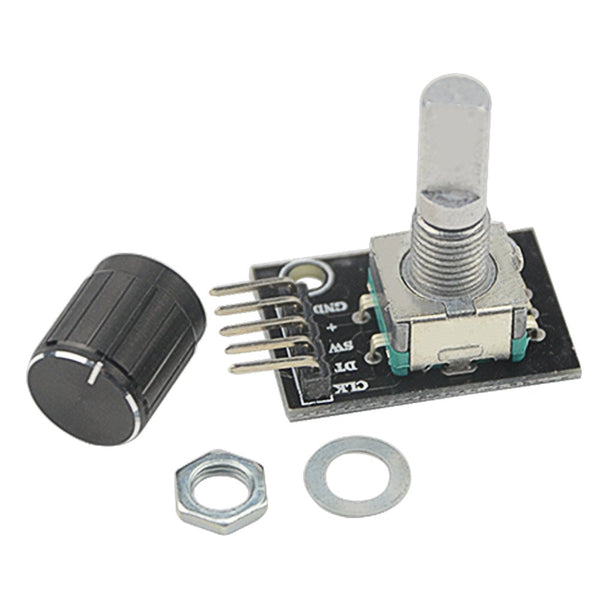

8 pack KY-040 rotary encoder module(knob, nut, washer included)

EAN: 0755082679841

Package Dimensions: 3.5 x 2.6 x 1.0 inches
